milling machine turcite sheet with glue

FOB Reference Price:Get Latest Price
US $1-20 / Meters | 5 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
bright pearl
Model Number:
lubricate
Material:
PTFE
Style:
Sealing Strip
Type:
in roll
color:
red,green
Thickness:
0.5-4.0mm
Max width:
300mm
Function:
Guide vane
Property:
wear-resisting
Standard or Nonstandard:
Standard
Supply Ability
Supply Ability:
5000 Roll/Rolls per Month
Packaging & Delivery
Packaging Details

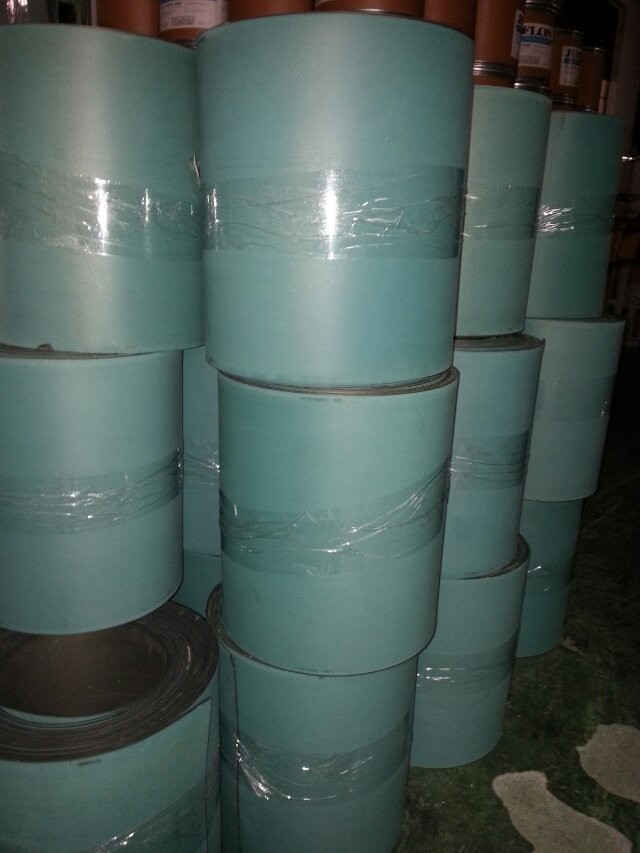

Small rolls packed in reinforced cardboard sheets Large rolls packed in 2'x 2'x 1.5' plastic drums/ wooden boxes
Port
tianjin,shanghai,qingdao
Lead Time :
Shipped in 5 days after payment



Product Introduction

Machine Tool Guide is a nano-polymer composites based on PTFE material,applying in all types of predision machine tools requiring high accuracy,CNC equipments and high-end guide bands products of processing centers. The guide bands contain rich solid lubricant particles,which enables the bands have a excellent friction and wearing properties. By force of nano super fine recipe,uniform and dense material and strong wearing resistance,the soft bands are widely used in all types of common machine tools,textiles,printing,paper-manufacturing,food,chemical engineering,woodworker or manufacture and maintenance of other mechanical sliding guide.,especially precision machine tools etc.



Property Characteristics

1)High Wearing Resistance: normally ten times of cast iron guide,good accuracy maintenance

2)Low Friction: friction coefficient<0.04,only 1/3 of cast iron guide,reducing the driving-energy consumption

3)No Creeping: moving steadily

4)Good Shock-absorbing Ability: improving processing accuracy

5)Good Lubrication

6)Easy-to-do Maintenance: as the hardness is much lower than metal,friction is mainly on the bands,we can just replace new bands. Meanwhile,it prevents the middle-deboss of the machine tool body.





Technical Data



Material

PTFE+bronze

Colour

red

green

Density

2.9-3.3

2.7-3.2

Coefficient of linear expansion (40-120°C)

7.62

7.5

Tensile strength (Mpa)

16

14

Elongation (%)

170

150

Compressive strength (Mpa)

30-40

28-38

Bending strength (Mpa)

25-30

23-29

Non-notched impact strength

(KJ/m2)

>15

>14





Friction loss performance     (dry friction)

Friction coefficient (μ)

0.15-0.21

0.16-0.23

trace Width of friction

(m)

<6

<7.5

friction loss

(mm3)

6.0-10.5

6.5-11.2







Size(seal size)



thickness

Standard thickness (mm)

0.8

1.1

1.2

1.4

1.6

1.7

2.0

2.5

3.0

4.0

width

Standard width (mm)

120

150

200

300



Packing & delivery



 Packing:Often packed it with carton,Or according the customer's ask .

 Shipping :International express TNT , DHL , EMS ,by air or by ship  and so on ,
