no asbestos fibre gasket sheet for water and steam sealing

FOB Reference Price:Get Latest Price
US $0.88-9.3 / Kilograms | 1000 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Bright pearl, Bright pearl
Model Number:
FXB200, FXB300, FXB350, 150-500
Material:
mineral Fiber, good rubber, heating
Shape:
sheet
Standard or Nonstandard:
Standard
COLOR:
yello,grey,red,black,green
THICKNESS:
0.3-5.0mm
Loss On Ignition:
<30%
Pressure:
0.8MPa-6.0MPa
Tensile Strength:
5.0MPa
Pliability:
No crack
Compressibility:
12+-7
Supply Ability
Supply Ability:
6000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
in wooden pallet of about 1000kgs, 2000kgs net each.
Port
tianjin,shanghai,ningbo
Lead Time :
Shipped in 20 days after payment

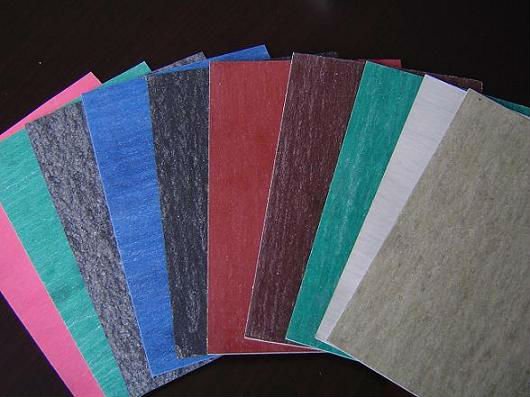

no asbestos fibre gasket sheet for water and steam sealing

No-Asbestos Jointing Sheets are made of special no-asbestos heat-resisting fiber , heat-resisting packing material, and special nature or NBR rubber compound heating and compression molding it.

  1. No-asbestos rubber sheet series include: FXB200, FXB300, FXB350
    Uses: Used for the equipment in water, steam, etc. and used as sealing material in the joints of pipeline
    Working pressure: 1.5~8.0 MPa ,Working temperature: 200 ~350°C.
  2. Oil-resistance no-asbestos rubber sheet series include: FNY150, FNY250, FNY300, FNY350.
    Uses: Mainly used as the aviation liquid the motive's kerosene, lubricant, the fuel oil and cold air system to join together the seal completely of place the sealing gasket material.
    Working pressure: 7.0~12 MPa, Working temperature: 150 ~350°C

Available Sizes:
Thickness: 0.5 to 5mm
1500 x 4500mm,  1500 x 4100mm,  1300 x 3850mm,  1500 x 2000mm,
1500 x 1500mm,  1500 x 1360mm,   1500 x 1000mm ,  1270 x 1270mm,
The other size is optional or according to the requirements of customers.

At the same time, steel wire net inserted (coated graphite) is available.

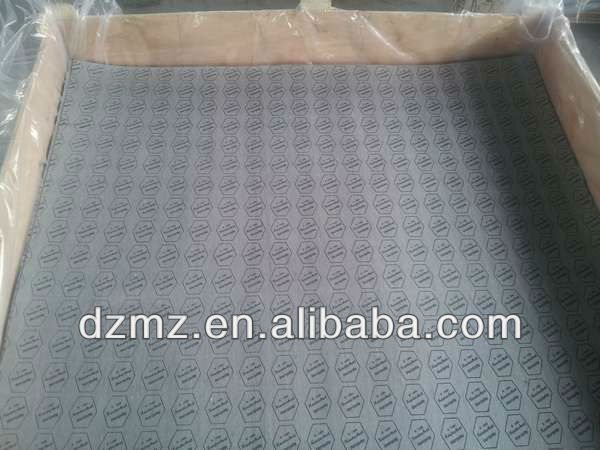

Packing: in wooden pallet of about 1000 kgs, 2000kgs net each.
