Quartz Glass Disc/Silica Glass Sheet

FOB Reference Price:Get Latest Price
US $2.5-15 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Clear Quartz Plate
Application:
Medical, Electronics instrument, Scientific research, Optical industry
Thickness:
0.5-30mm
Shape:
Circular Shape, Round, Square, Rectangular and Various shapes available
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Bright pearl
Model Number:
Clear Quartz Plate
working temperature:
1100 ℃
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
1pcs in a white paper box and then 50-60pcs/ carton, then in wooden case
Port
tianjin,qingdao,shanghai,ningbo
Lead Time :
Shipped in 5 days after payment

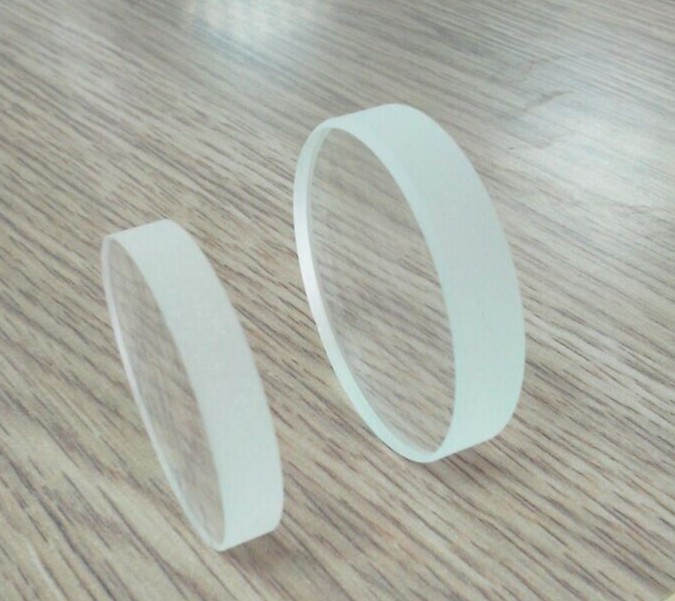

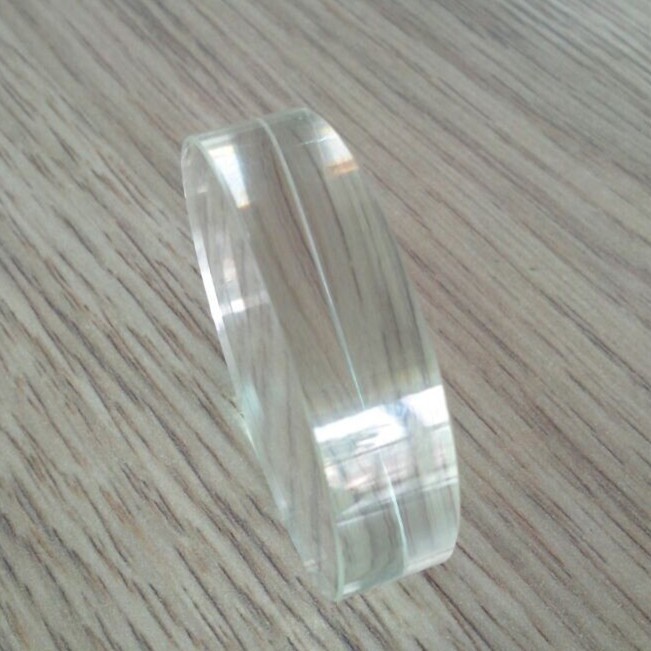

                                             Polished clear quartz glass sheet

Company Infotmation

our company specializing in the production of borosilicate sight glass, tempered sight glass, a variety of water level gauge glass, tempered glass, various valves glass, level gauge and flow meter glass. .




Product Description



 Size and shape
1.Size : Customized size available.



2.Shape : Round, Square, Rectangular and Various shapes available.



3.MAX Size : 1000mm×2000mm for Square shape



4.If the width is not more than 205mm, the max length we can supply is 3000mm.







Physical Properties



SIO2 :

99.9 %

Density :

2.2(g/cm3)

Degree of hardness moh' scale :

 6.6

Melting point:

1732°C

Working temperature :

1200°C

Max temperature can reach in a short time :

1450°C

Acid tolerance:

30 times than Ceramics , 150 times than Stainless steel

Visible light transmittance :

above 93%

UV spectral region transmittance:

80%

Resistance value :

10000 times than ordinary glass

Annealing point:

1300°C

softening point:

1630°C

Strain point:

1200°C







Chemical composition(ppm)



AL

Fe

K

Na

Li

Ca

Mg

Cu

Mn

Cr

B

Ti

5-12

0.19-1.5

0.71-1.6

0.12-1.76

0.38-0.76

0.17-1.23

0.05-0.5

0.05

0.05

<0.05

<0.1

<1.0







Common Size :



φ50×10±1mm

φ60×10±1mm

φ70×10±1mm

φ80×10±1mm

φ95×12~13mm

φ95×15~16mm

φ100×15~16mm

φ100×18~20mm

φ120×15~16mm

φ120×18~20mm

φ130×15~16mm

φ130×18~20mm

φ140×15~16mm

φ140×18~-20mm

φ150×18~20mm

φ150×18~20mm

φ160×18~20mm

φ165×18~20mm

φ180×18~20mm

φ180×24~26mm

φ200×18~20mm

φ200×24~26mm



Packaging & Shipping
