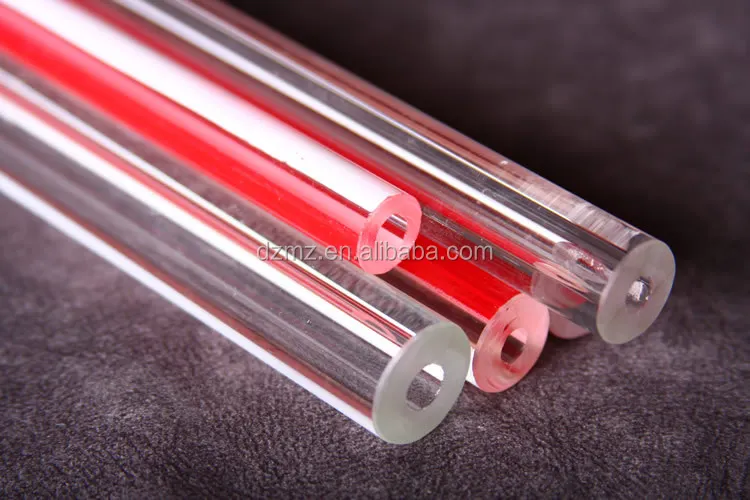

red white line borosilicate glass tube

FOB Reference Price:Get Latest Price
US $0.29-15.9 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Bright pearl
Model Number:
Printed Glass
Type:
Tempered Glass
Application:
Lighting Glass
Thickness:
from 0.8 to 12mm
Composition:
Toughened Glass
color:
clear
tempered glass:
brocilicate glass
Outside Diameter::
from 3mm till 350mm
Surface Treatment::
Polished
Packaging Details:
standard export carton or in wooden case
Usage:
for lab ware glass tube
Standard length:
1500 or 2000mm
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Inner: Air-cushion film Outer: Carton or wooden case. We can also pack the goods according to buyer's requirement
Port
tianjin
Lead Time :
7 days after the receipt of your payment

Product description

The material is high borosilicate 3.3. And the working temperature is 450-500C.Borosilicate 3.3 series glass

is a kind of special type glass material with the features of low expansion coefficient,high temperature resistance,
high intensity, high rigidity, transparency
and chemical stability. It doesn't explode in high temperature, and can

be forged and drawn to variety of formation when soften.

The features as below :



1.)Test tube with round bottom and flat bottom.

2.)Rim: with rim or without rim

3.)Material: borosilicate 3.3 or borosilicate 4.0



Products description :

1.) Premium quality glass tubes are produced from borosilicate glass that provides excellent chemical   resistance and durability. Clear Borosilicate glass test tubes can be used for chemical experiments as well as experiments related to density and other physical properties of liquids.

2.) Tubes feature well-rounded bottoms and smooth fire-polished rims.

3.) Our Glass Test Tubes are cost-effective solution for diverse chemical applications.

4.)Production according to ISO standards or as per your specifications.

5.) Standard packaging is shrink wrapped firstly, then put into strong corrugated carton.



Color:
clear, blue, amber, white, puple, pink
deep processing:
1)decal
2)hole
3)sandblast outside/inside
4) fire polished ends



Some technicial parameters :

Physical Property

No.

Physical performance

Numerical Value

Unit

1

Coefficient of mean linear thermal expansion(20°C,300°C)

3.3±0.1

10-6K-1

2

Transformation temperature

525±15

°C

3

Softening point

820±10

°C

4

Working point

1260±20

°C

5

Density at 20°C

2.23±0.02

g/cm3

6

Mean thermal conductivity(20°C-100°C)

1.2

w/m2k

7

Refractive index

0.92

1



Main Composition

SiO2

B2O3

Na2O+K2O

Al2O3

81

13

4

2



Chemical Property

Hydrolytic resistance at 98°C

ISO719-HGB 1

Hydrolytic resistance at 121°C

ISO720-HGA 1

Acid resistance Class

ISO1776-First Class



Main typical application :

a.)labware,
b.)lighting,
c.)diray machine
d.) craftware
e.) solar collect
