High borosilicate glass/level gauge glass

FOB Reference Price:Get Latest Price
US $2.7-25.5 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Bright pearl
Model Number:
Tempered Glass
Function:
Insulated Glass
Shape:
Flat
Structure:
Solid
Technique:
Clear Glass, Tempered Glass
Type:
Sheet Glass, Tempered Glass
Material:
borosilicate
Size:
plain
Application:
boiler
Thickness:
17mm
Composition:
Toughened Glass
Working pressure:
4-8.0MPa
Special size:
optional
Working temperature:
260 °C
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50 or 100pcs each paper carton, then in wooden case
Port
Tianjin,Qingdao,Shanghai,Ningbo
Lead Time :
Shipped in 10 days after payment

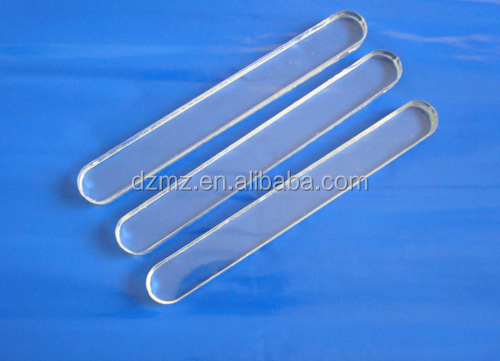

Borosilicate Transparent Gauge Glass

Transparent glasses are also manufactured from “extra-hard” borosilicate glass. The surfaces on both sides are finely smooth and  ensure optimal transparency.

Now we have two kinds manufacturing technique:

  1. One is as same with reflex Gauge Glasses, use moulds to make the semi-finished products, afterwards, ground and polish the two side to ensure optimal transparency. By this manufacturing technique, the definition isn’t good.
  2. The other manufacturing technique is: At first, we manufacture 17mm thickness glass sheet, then cut the glass sheet according the detailed size and polish the side face for the smooth. This manufacturing technique glass is very clear, but the goods cost is higher.

It can be used with all media except steam at service conditions up to 6MPa and temperatures up to 260 °C.

Size:

  1. Type A:
    400x30x17mm(A11 ; AXI )     370x30x17mm ( A10 ; AX )
    340x30x17mm (A9 ; AIX )       320x30x17mm (A8 ; AVIII )
    280x30x17mm ( A7 ; AVII )      250 x 30x17mm (A6 ; AVI )
    220x30x17mm ( A5 ; AV )        190x30x17mm (A4 ; AIV)165x30x17mm ( A3 ; AIII )
    140x30x17mm ( A2 ; AII )        115x30x17mm ( A1 ; AI )
  2. Type B:
    400x34x17mm(B11 ; BXI )       370x34x17mm ( B10 ; BX )
    340x34x17mm ( B9 ; BIX )        320x34x17mm ( B8 ; BVIII )
    280x34x17mm ( B7 ; BVII )       250x34x17mm ( B6 ; BVI )
    220x34x17mm ( B5 ; BV )         190x34x17mm ( B4 ; BIV )165x34x17mm ( B3 ; BIII )
    140x34x17mm ( B2 ; BII )        115x34x17mm ( B1 ; BI )
  3. The other size is optional or according to the requirements of customers.

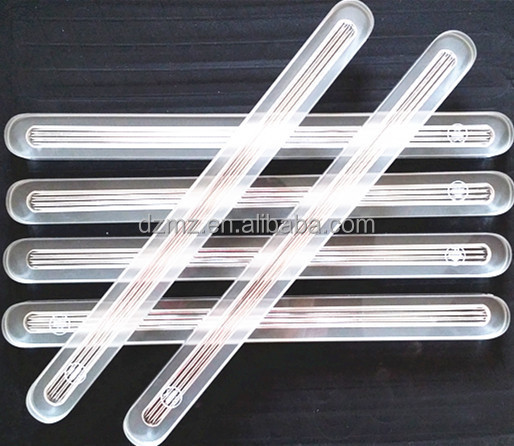

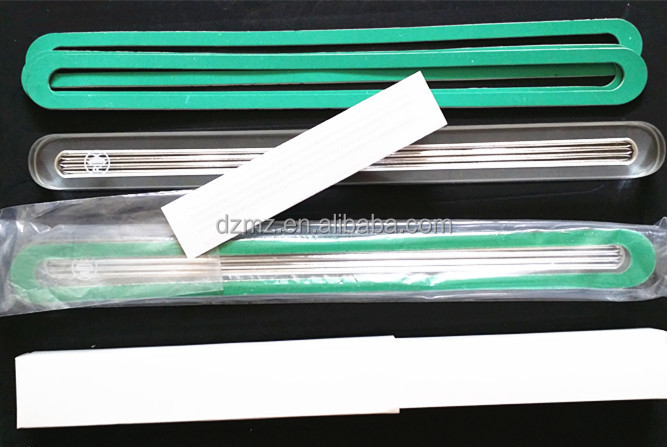

reflex glass (2)glass,gasket,packing,Instructions (31)
