Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Bright Pearl
  • Model Number: Turcite B
  • Type: in roll
  • color: red,green
  • Thickness: 0.5-4.0mm
  • Max width: 305mm
  • Function: Guide vane
  • Property: wear-resisting
  • MOQ: 5kg
  • Material: PTFE
  • Certificate: ISO 9001
  • Delivery time: 5-7 days

Packaging & Delivery

Packaging Details Small rolls packed in reinforced cardboard sheets Large rolls packed in 2'x 2'x 1.5' plastic drums/ wooden boxes
Delivery Time Shipped in 5 days after payment
Product Description

Turcite

Name: Turcite is also name as turcite B, turcite slydway or turcite slideway. It is used for the maching lathe.
Composition: PTFE/teflon and bronze.
Feature: Our PTFE turcite b was welled developed and tested by our professor in East China University Of Science and Technology. Turcite quality reach to international good quality standard. Our turcite density is uniform,outlook is straight and flat, wear resistance is stronger. What’s more, the glue is made by imported environmentally materials, almost have no smell. Glue weight ratio is 1:1, easy to handle. With nanometer filler technic, the glue will not settling for longterm storage. Bonding strength and oil resistance is better than before.
Function: Turcite B is the traditional bearing material used on machine tool ways, transfer lines or any linear movement application in which reduced friction and wear resistance are critical design considerations. Turcite B Slydway increases accuracy, reduces damage caused by mechanical breakdowns and lubrication failures, extends the useful life of mechanical components, saves energy and improves stick-slip performance.

Material
PTFE+bronze
Colour
Blue
Red
Green
Density (g/cm3)
3.4
3.3
3.2
Coefficient of linear expansion (40-120°C)
7.7
7.62
7.5
Tensile strength (Mpa)
17
16
14
Elongation (%)
180
170
150
Compressive strength (Mpa)
33--42
30--40
28---38
Bending strength (Mpa)
25-30
25-30
23--29
Non-notched impact strength (KJ/m2)
>16
>15
>14
Wear(PV=0.7N/mm2.m/s)
0.010-0.020
0.010-0.020
0.010-0.020
Friction loss performance
 (dry friction)  Friction coefficient (μ)
0.13--0.20
0.15-0.21
0.16-0.23
Detailed Images

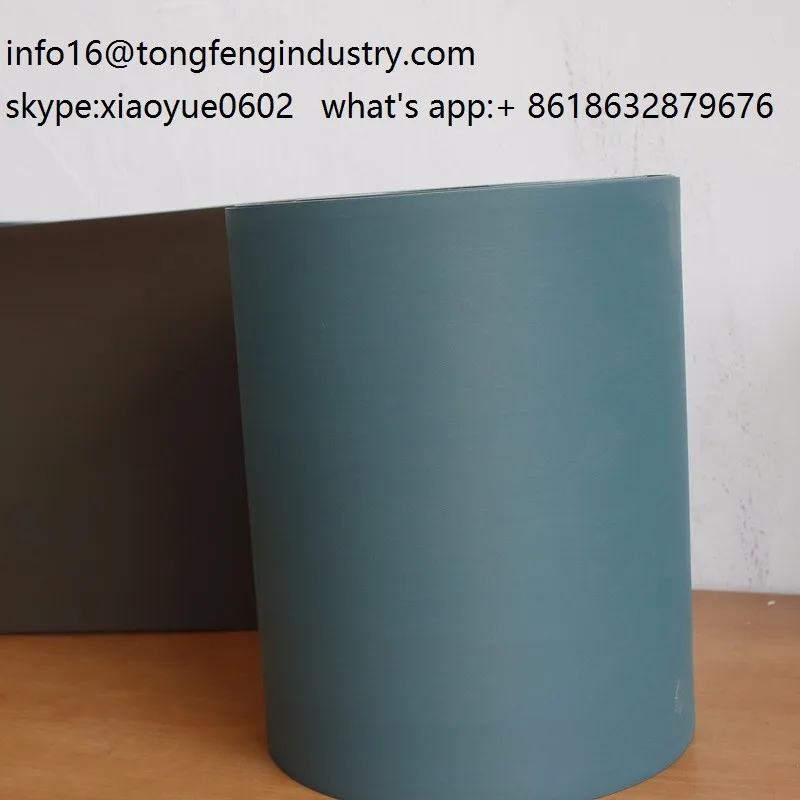

Blue Color

All raw material is imported.

Size:

Width :305mm
Thickness: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm

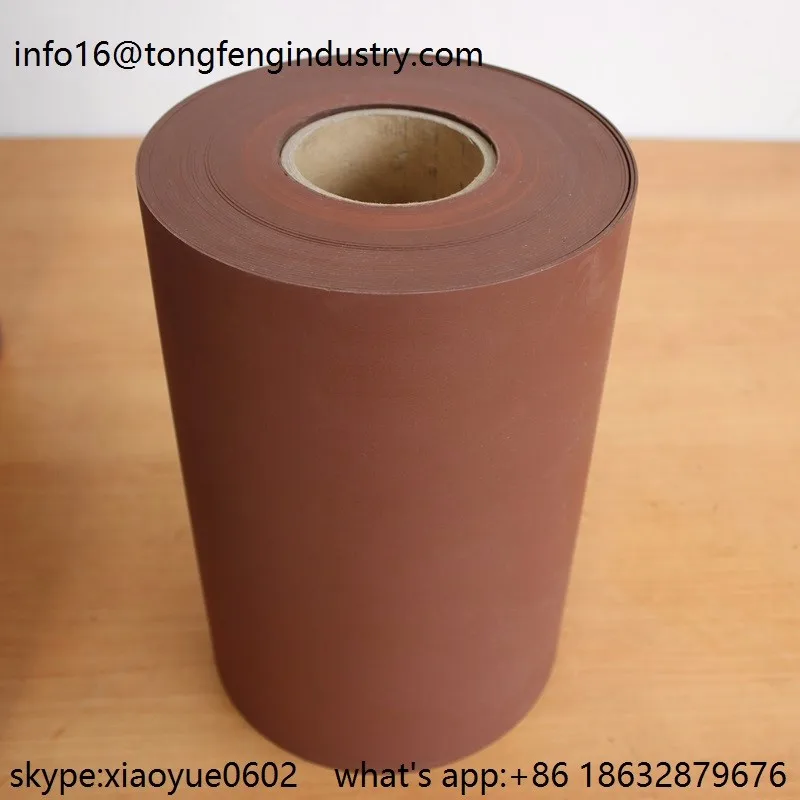

Red Color

PTFE material is imported.

Size:
Width :100mm, 200mm, 300mm
Thickness: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm

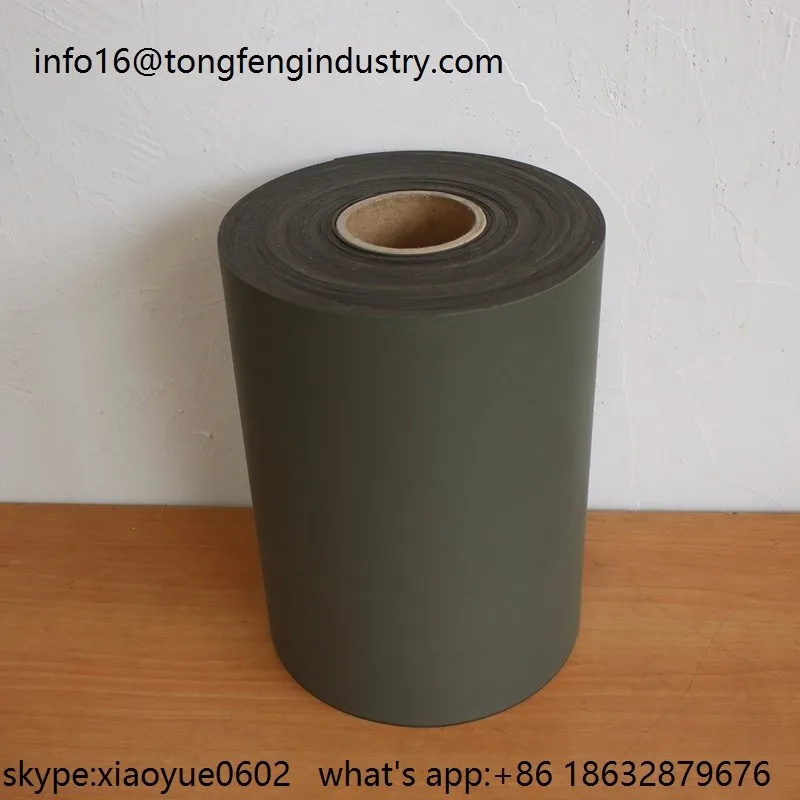

Green color

All raw material is domestic.

Size:
Width :100mm, 200mm, 300mm
Thickness: 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.7mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm

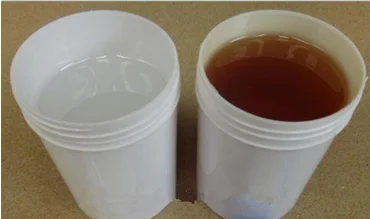

Glue A+B

A+B is 1.1KG/set
1 set is for about 2 Meters or so, various a bit for different width.
1 set is for about 3KG turcite or so, but various a bit for different thickness.
You can tell me the turcite size and ask me for calculate how much you need.

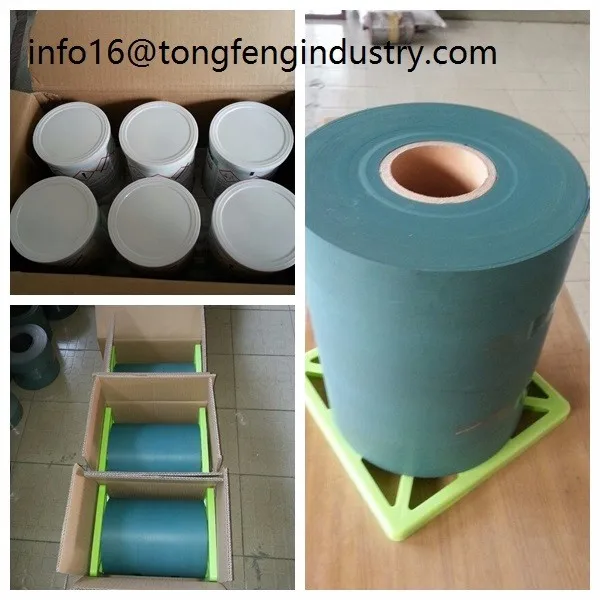

Packing & Delivery

Packing:Often packed it with carton,Or according the customer's ask .
Shipping :International express TNT , DHL , EMS ,by air or by ship and so on
